Dithering calibration

I think the biggest difference (apart from light pollution) is your 130mm f/5 sixtuplet vs my 60mm f/6 doublet. Combined with the 15% larger pixel pitch of the D810, I would say you might have 1/5th the exposure time but you have well over 50% more exposure. And everyone knows 1x300 seconds are not the same as 5x60seconds which is what I was struggling with, especially in terms of the faint signal.

Without getting too far off topic or getting too nitty gritty, our setup captures 82% more photons per pixel but your D7500 has half the amount of read noise (newer technology) so you need exposures 4x shorter to swamp the read noise but taking into consideration the focal ratio difference it brings it closer to 1/3 of the exposure. So 3x100s is close to equal to 1x300s but if you have some light pollution to contend with (ours was taken under Bortle 1 skies) then you may not need longer than 60s exposures to swamp the 1.5e- read noise.

Something to remember is that if you don't use darks you are still stacking the noise term and averaging it out. Yes, signal increases faster than the noise terms but they're still there potentially corrupting the data.

First of all, sorry for mixing you with David, the OP. I kept wondering why you say "we", it is clear you are referring to some group of people. I would like to apologise in advance if I sound too direct, I am a Greek, I am not being hostile or anything, it is just how we speak. I do enjoy the conversation, a lot.

Now, our topic -which you are correct that we should stay on- is calibration techniques when dithering. I presented an image that was extensively dithered and used no calibration frames whatsoever. You presented a much better image that used calibration frames. But is it on topic? I don't think so, because it is only 20 subs. This excludes any meaningful dithering, indeed is at the lowest limits of any statistically based noise & undesired signal reduction method, including sigma clipping or plain averaging. This is actually a completely irrelevant picture when discussing calibration methods when dithering since it does not rely on dithering,

I concur that the difference between your picture and mine is indeed dramatic. However, the question is whether this is because of calibration frames or not. Are you suggesting that if I used calibration frames the image would magically become the equivalent of 20 hours integration instead of the 10 hours that it is? I assure you this is not the case. This was a 4 month project and I did try using darks. I decided that I didn't need them which is a completely different thing. Reversely, do you think that if you removed the darks your image would suddenly become as noisy as mine? I seriously don't think so.

The fact of the matter is your image is taken  in Bortle 1 sky with equipment that costs as much as my equipment _and_ a small car which I could use to load up my equipment and drive thirty minutes to a Bortle 4 location instead of my balcony which resides in the border between a red and a yellow zone. This and the difference in gear are order of magnitude factors when it comes to detail and contrast, not calibration frames.

I think you are giving read noise more significance that it's really worth. Swamping the read noise is indeed important, but collecting signal is more important. If you have two times the level of light pollution you need indeed half the exposure time to swamp the read noise. But you also need four times the exposure time to collect the same faint detail. Otherwise people would be chasing places with high light pollution. Why expose even 30 seconds if you can go under a street light and "swamp light pollution" in 30 milliseconds? I do not know exactly how much darker is a Bortle 1 sky from a Bortle 6-7 sky.  I think the difference is more than 10X which means your 2 hours capture as much faint detail as 200 hours of mine, even if the equipment was identical which it isn't.

I also sense a misconception regarding what exactly is it that darks do. Perhaps it I am only misunderstanding an informal use of the term "read noise", but darks do not remove read noise. Darks are completely unrelated to read noise. Indeed darks, like all calibration frames, remove no noise whatsoever and instead increase it. You cannot remove noise by subtracting a dark frame that only has noise because noise is random and works additively. The things that we use darks for, we all call them "noise" informally or for simplicity's sake but from an information theory point of view are actually signal, albeit undesired. Specifically they are (for a given sensor operating in a given gain):
1) Amp glow (function of temperature and time)
2) Hot pixels (their number is a function of temperature and time)
3) Dark signal (a function of temperature and time)

Each of the three kinds of undesired signal is basically predictable for a given sensor configuration, exposure and temperature which is why subtracting a dark takes it away. However, it has its own associated noise (proportional to the square root of the signal) and this noise is NOT removed when you add darks. It is increased because each dark brings in exactly the same amount of noise as a light. The only thing that reduces noise in the whole process is averaging and sigma clipping. Or a noise reduction algorithm, which is also using statistics but in a different way. These are not inferior alternatives. These are the only alternatives for reducing read noise.

So the question becomes whether including darks brings in more benefits than costs compared to other methods that deal with the undesired signal, in the very specific context of a) a DSLR and b) with dithering. I will say beforehand that I am not against darks. There is a reason the VLT and Hubble raw datasets include darks. But this applies to specific types of gear. Especially CCD and some CMOS sensors that exhibit severe amp glow.  Here is a 300 second Ha sub from my ASI 178MM, whose sensor falls under that category (all images are stretched):



And here is the same sub, corrected with a master dark (not a perfect match but very close and the improvement is clear)



Here is the master dark itself. This is the "noise" (actually thermal signal) that gets subtracted:



I agree this is significant and not amount of dithering can remove it (except perhaps thousands of subs, in which case it is best to just take a dark). There is no disagreement here. It would be silly not to use darks. When you are eliminating a thing that looks like the sun in the corner, it doesn't matter if you add a little noise to the result.

But we are not talking about the ASI178. We are talking about DSLRs.

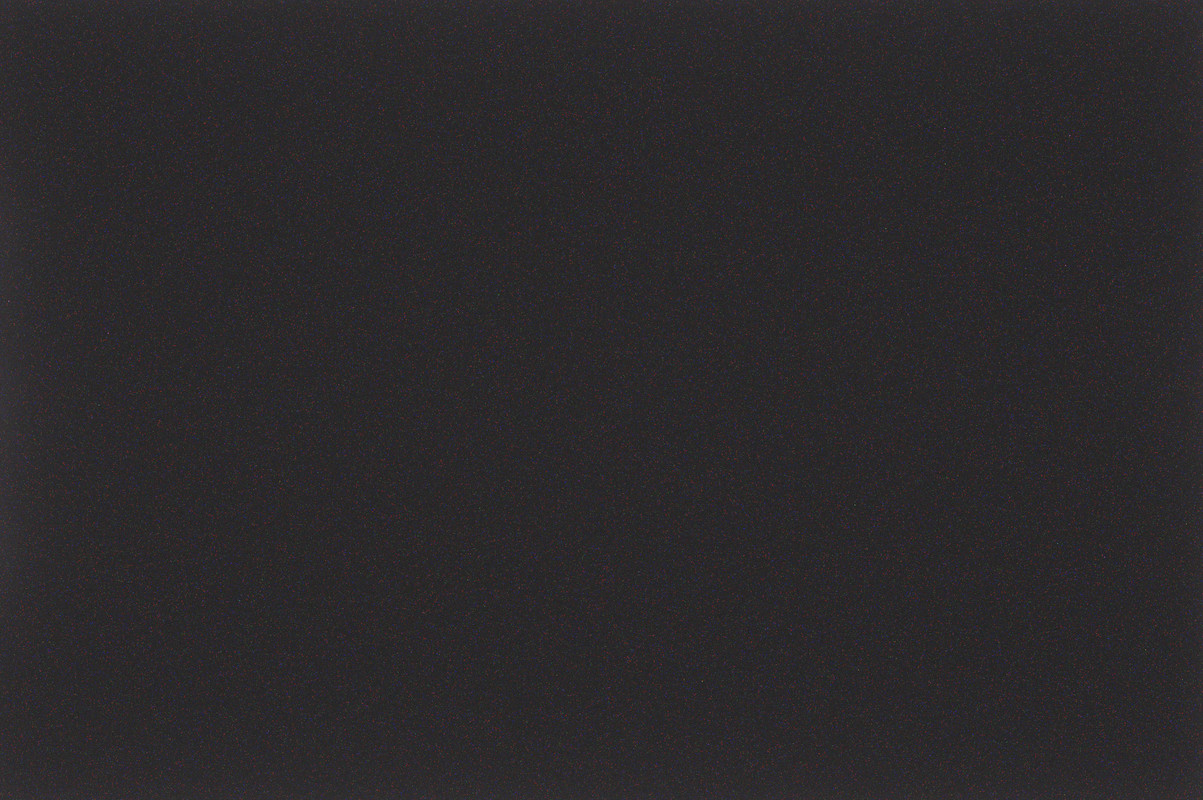

Now let's see a master dark from the D7500 (again, stretched at extreme levels). This is actually from 54x240 second subs, right below the threshold where the D7500 starts perhaps needing darks:


There is simply no comparison. There is almost no dark signal, since the D7500 has in sensor dark current suppression (meaning the main source of thermal signal is "choked" electronically inside the pixel, before any electron gets captured). There is very little amp glow on the left edge which one would probably want to crop anyway, a few hundred hot pixels and that's all. Would I want to add the faint random noise of that image to my lights, just to get rid of the hot pixels? No I wouldn't. Much better to use a BPM or a hot pixel detection algorithm in the raw processor. They will not introduce noise, unlike the dark. And they will produce a more correct result, as they interpolate the value of the hot pixel from the neighboring ones instead of clipping it to zero.

And like I said the D7500 is an exception in that it probably needs darks after some point. It is very different with most other modern DSLRs.

To be sure, I am not saying "do nothing about the undesired signal". I am saying that with a DSLR and especially in a dithering context which is our subject, one can (and in most cases should) deal with it in better ways:
-You *should* swamp the readout noise and bias signal. But is very difficult not to do that with any modern DSLR because of the quality of the electronics, just don't use the lowest ISO and anything above 30 seconds will swamp those things. No bias. Plus, how much sense does it make to use bias frames if the bias signal is clipped on camera?
-You can use a BPM or an algorithm to deal with hot pixels, although they are much less of a problem with dithering.
-You can use algorithmic vignetting instead of flats. You *should* prefer flats if you have large dust motes.
-You can use noise reduction *before* integration to deal with the various kinds of noise, something which calibration frames won't do.

I do apologise for the lengthy and somewhat passionate post.

Cheers,
Dimitris
